60Bar Ceramic Pressure Sensor

Place of Origin : China

Brand Name : OEM

MOQ : Negotiable

Price : Negotiable

pressure range : 0-2 Bar.....60Bar

output : 0.5-4.5V

Power supply : 5VDC

Accuracy : 1%F.S

Thread : thread 1/4 NPT Male

Electronic Connect : Packard Connector 3 Pins

Temperature : -10-85 Centigrade (customized)

Material : stainless steel

Application : oil air water pressure measurement

cable : 1m free

Certification : CE;ISO

Packaging Details : Stardard Export Packing By carton

Delivery Time : 5-10days

Payment Terms : L/C, T/T, Western Union

Supply Ability : 20,000 pcs per month

Contact Now

60Bar Ceramic Pressure Sensor

Products Description

1. Suitable for wall hanging furnace, gas furnace, gas storage, etc all kinds of hydraulic, pneumatic pressure measurement
2. Suitable for civil use product batch
3. Static accuracy: plus or minus 1.0% FS
4. Pressure range 0-1.2 MPa (can be customized according to customer requirements)
5. Wide range of temperature compensation
6. Medium for non-corrosive gas, water, oil, etc

Pressure Range	0-2 Bar.....60Bar
Typical Accuracy	1%F.S
Max Error	± 1.5 %FS~±3%F.S. (including 0 ~ 90 ℃ temperature error)
Working Temp	-30℃~105 ℃
Storage Temp	-40℃~85℃
Supply voltage	5.0 ± 0.5VDC; 24VDC, 12~36VDC.....
Measures media	Air, water, oil and other non-corrosive, non-solvent medium
Vibration	10Hz,3mm/ one hour
Remarks	Special applications request ,can custom by order

Application:

Hydraulic Pressure Monitoring
Vehicle Brake System Monitoring
Gas/Oil Pressure Measurement
Farm Machinery
Off Highway Vehicles
Power Plants
Car
Appliances
Air compressor, refrigerator

Feature:

Light weight, Small size
Convenient to install and operate
No wear, Stable performance
Small drift in long time
Complete compatible
Can replace mechanical sensor directly
Compete surge-voltage protection

Product Tags:

60Bar ceramic capacitive pressure sensor

4.5V ceramic pressure transmitter

Light weight ceramic pressure transducer

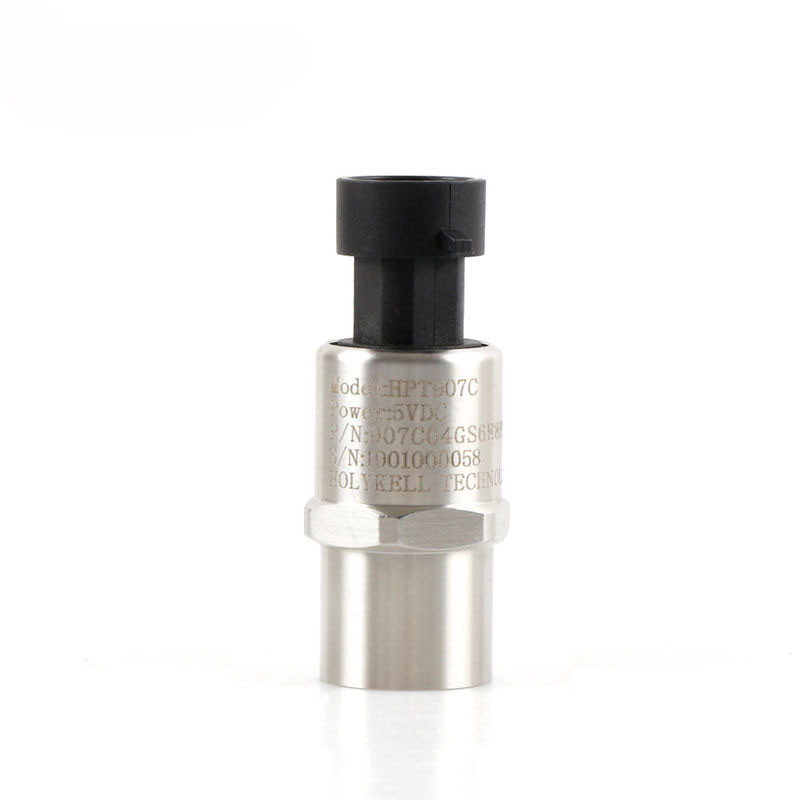

60Bar Ceramic Pressure Sensor Images
